SM Matrix

View demo More detail

This guide will help you install SM Matrix themes step by step.

1 SYSTEM REQUIREMENT – Back to top

At the basic level, this theme will require the following conditions:

Compatible with Magento Community Edition 1.7.x; 1.8.x and 1.9.x ( latest version 1.9.2.0 ) (require: php 5.4 and Memory_limit no less than 256Mb)

2INSTALLATION – Back to top

There are two ways to install a Magento Theme:

Quickstart Installation: By using this package, you will set the theme exactly as our Demo with sample data.
Manual Installation (include of Theme Installation).

2.1 Quickstart Installation :

Magentech provides SM Quickstart package for each theme which aims to ease the installation for users. It will help you save much time of installing and configuring if you plan to start your site from the beginning. Please following steps below:

Step 1: Download the quickstart package
Step 2: Extract and Upload the whole Quickstart package to your server. In Quickstart folder you will see the extracted folder that include all sample data

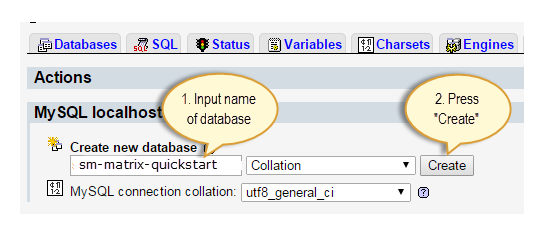

Step 3: Create a Database for your Magento

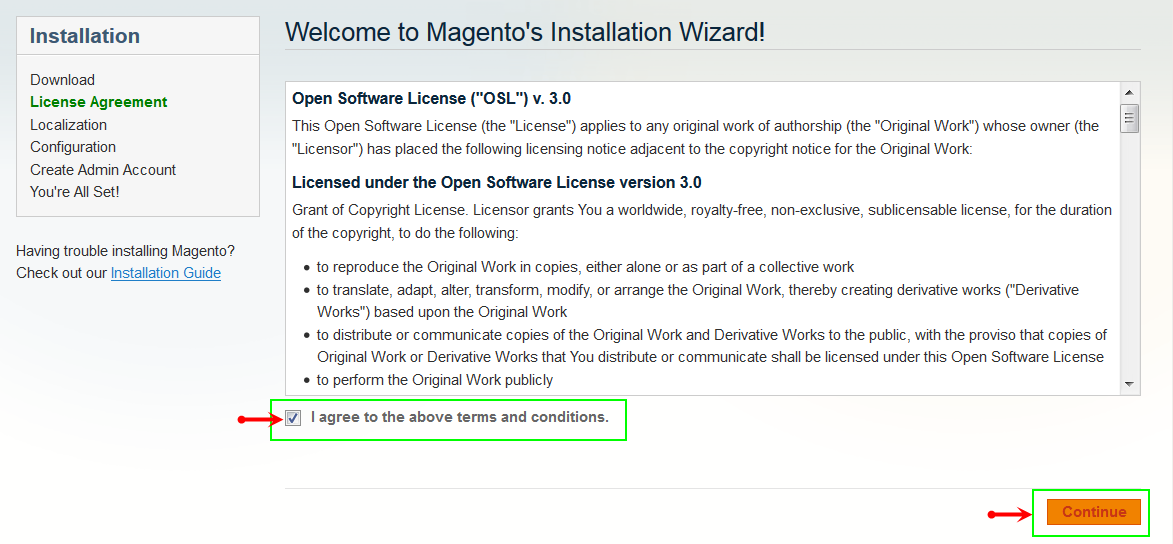

Step 4: Start installation by opening browser and navigate to your URL (where the Quickstart uploaded) to load default Magento installer. Please follow each step of the Installer so that the installation process can be set.

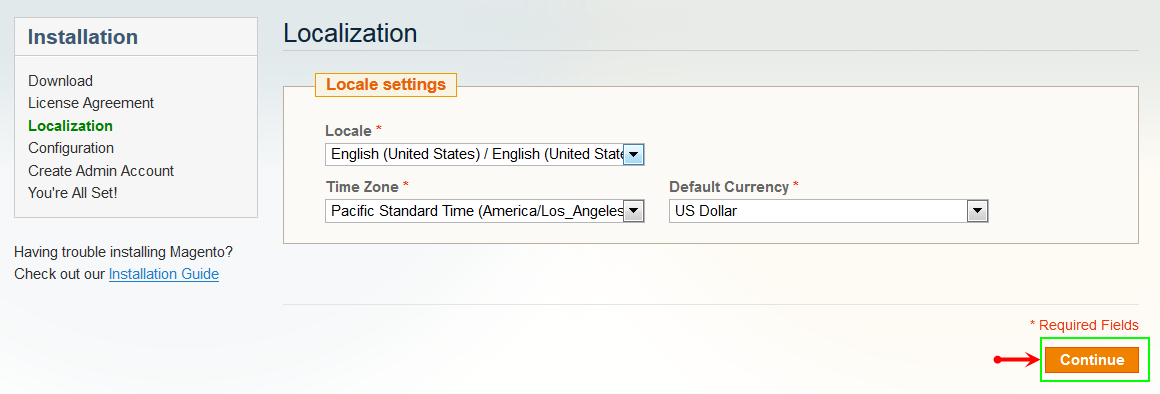

Step 5: Locale Settings. Please fill fully into Required Fields (“Locale; Time Zone and Default Currency”.)

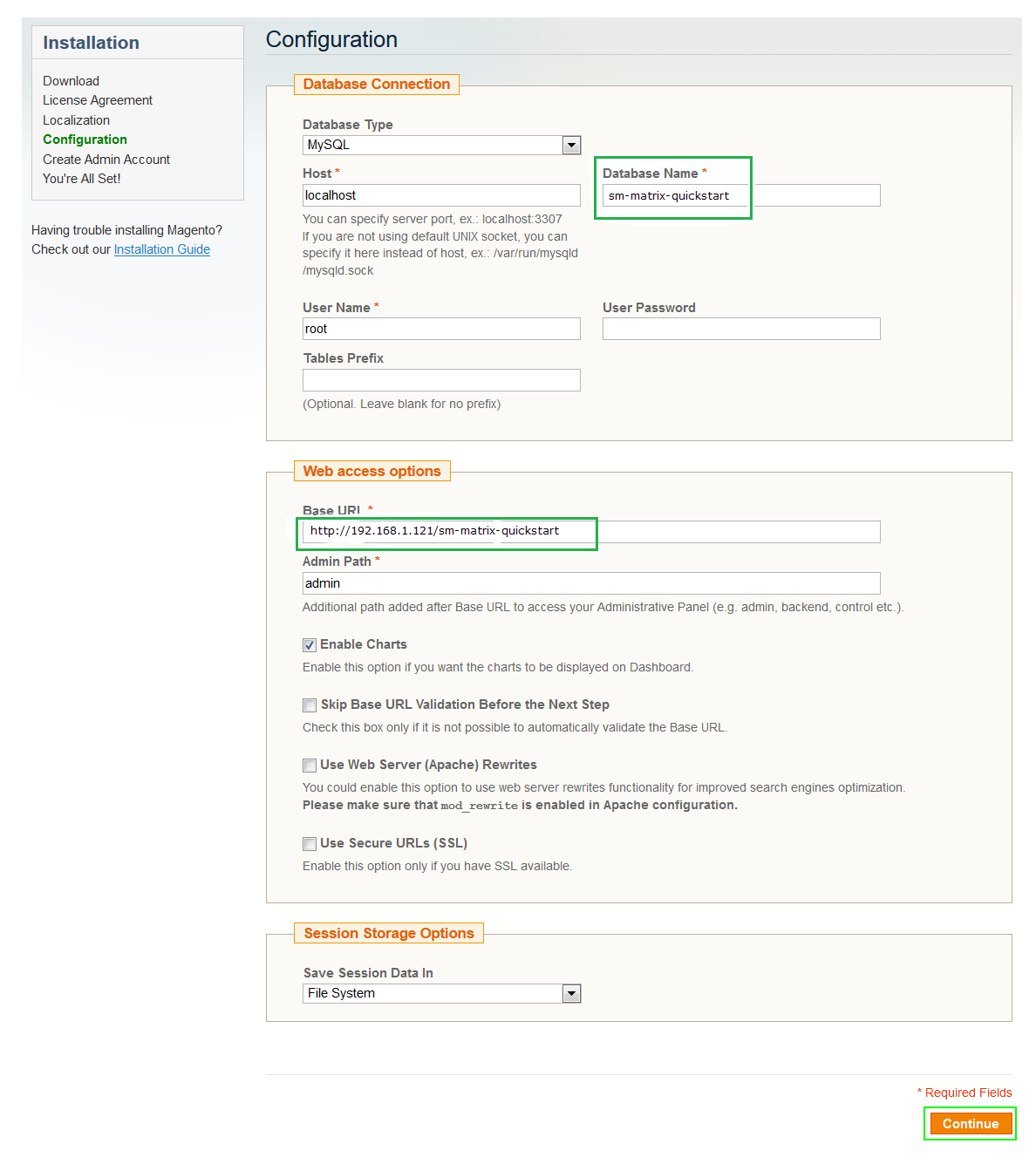

Step 6: In the Configuration step, input the required fields as below.
- Do not use ai???localhostai??? in URL, otherwise you could not log in to your Admin area (you should use your local IP in case of installing on your computer).
- Leave Tables prefix field blank.

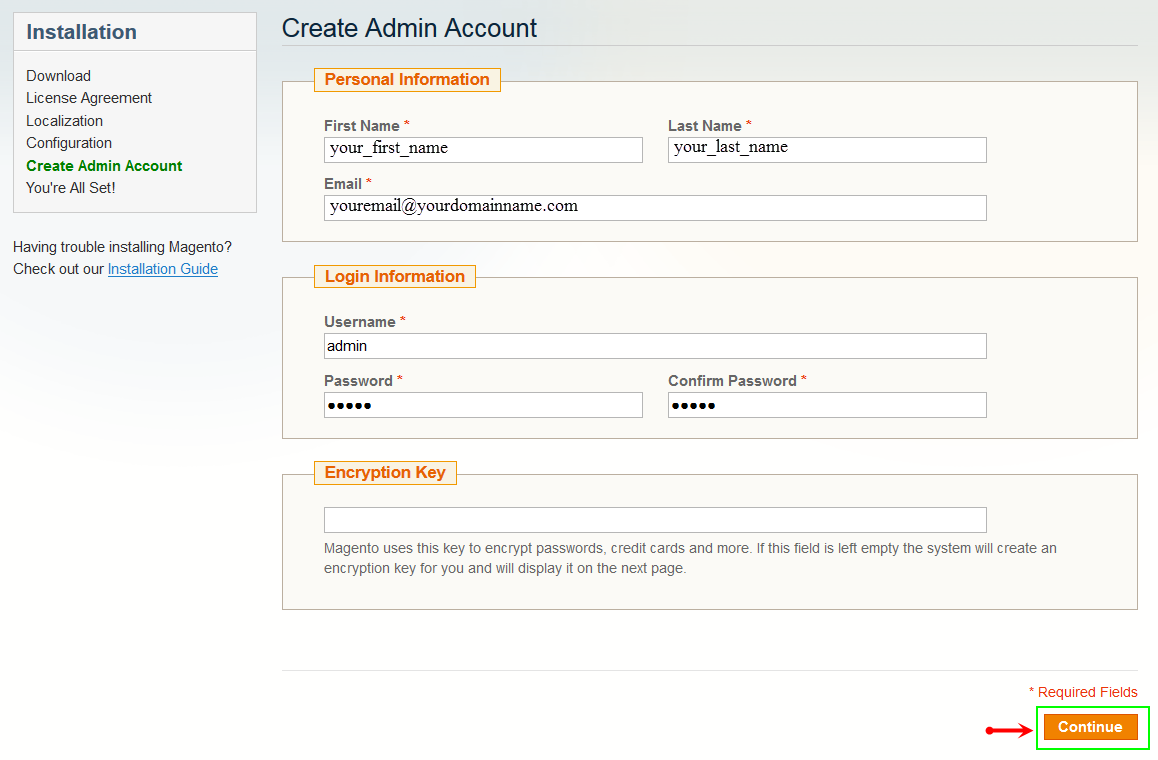

Step 7: Create Admin Account. Please fill fully into Required Fields (“First Name; Last Name; Email; Username; password and confirm password”.)

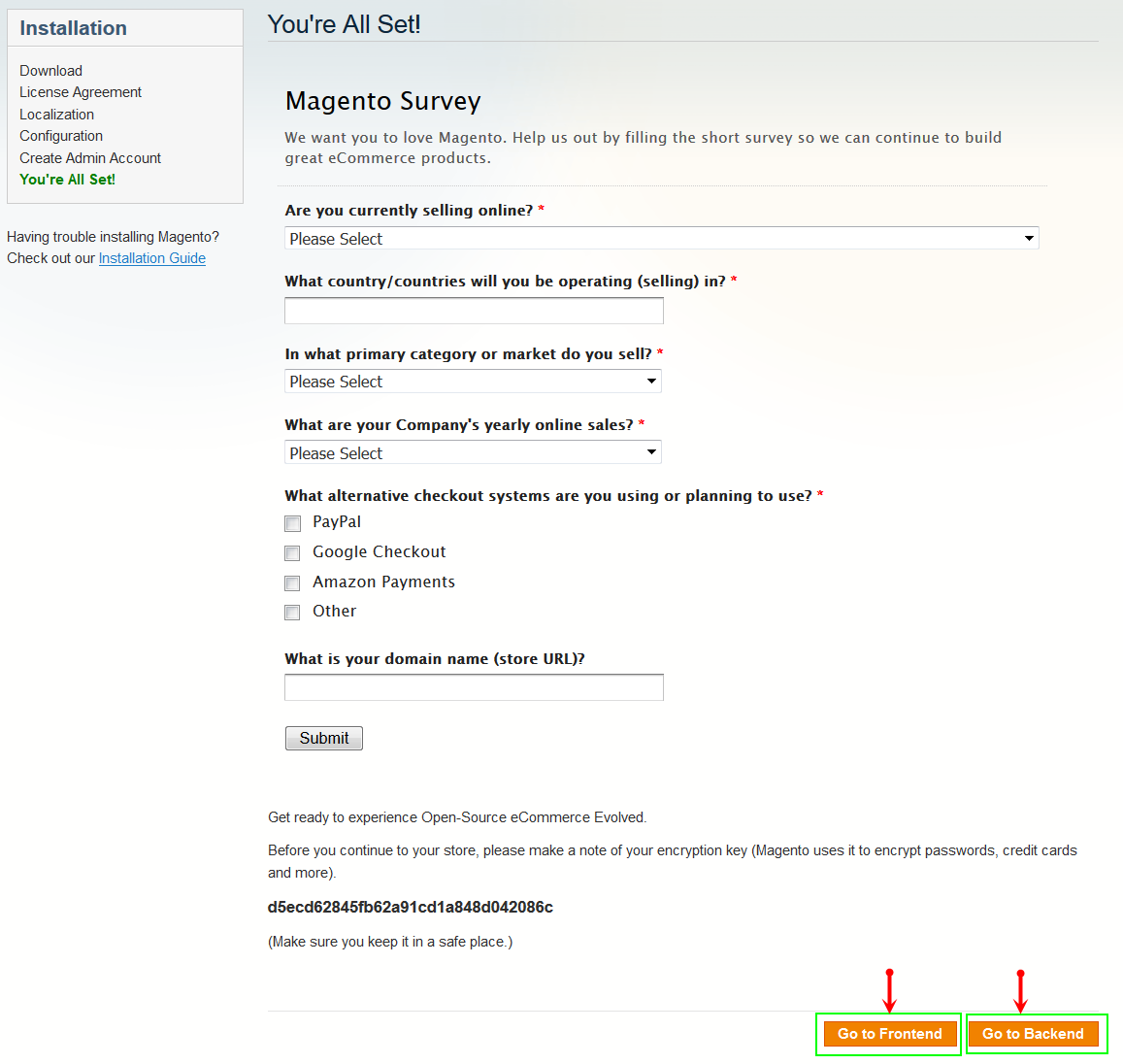

Step 8: Finish Installation and now you can Go to Frontend or Go to Backend.

2.2 Manual Installation

Step 1: Extract “sm_atom_theme.zip” file and Copy folders skin; app; media, lib to your site root folder.
Step 2: Log in to your Admin Panel (e.g. Access Magento Admin area: http://yourdomain/index.php/admin/). Log out and log in back.
Step 3: Navigate to System >> Cache Management, Sellect All the cache types, take Action as Refresh and Submit.

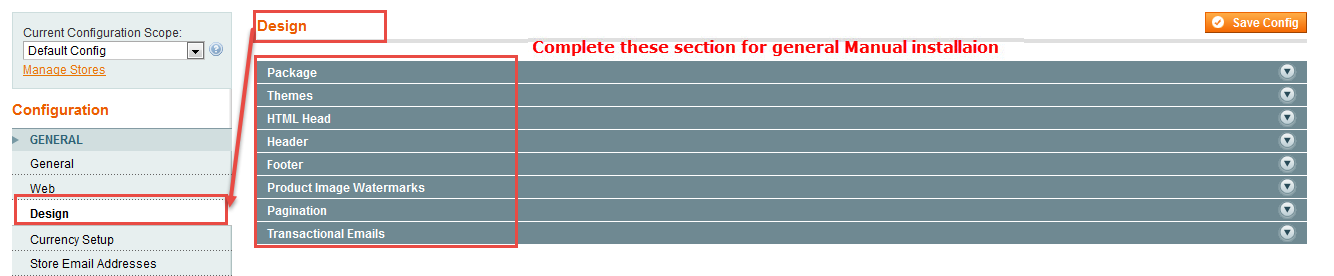

Step 4: Navigate to System >> Configuration >> Design.

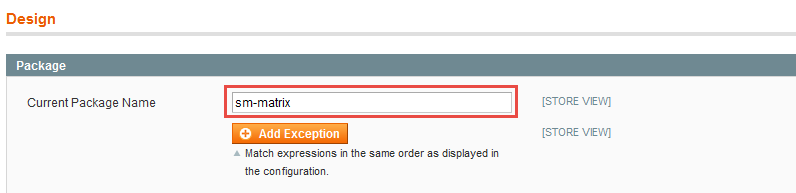

Step 5: In Package tab of Design Section, input the parameter Current Package Name with the actual theme name.

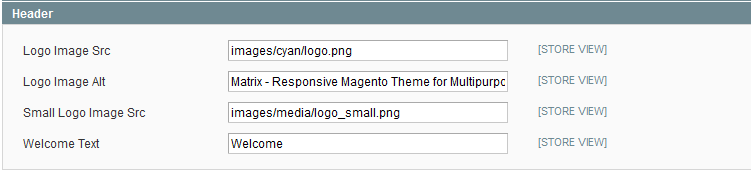

Step 6: You can also change the settings for Header .

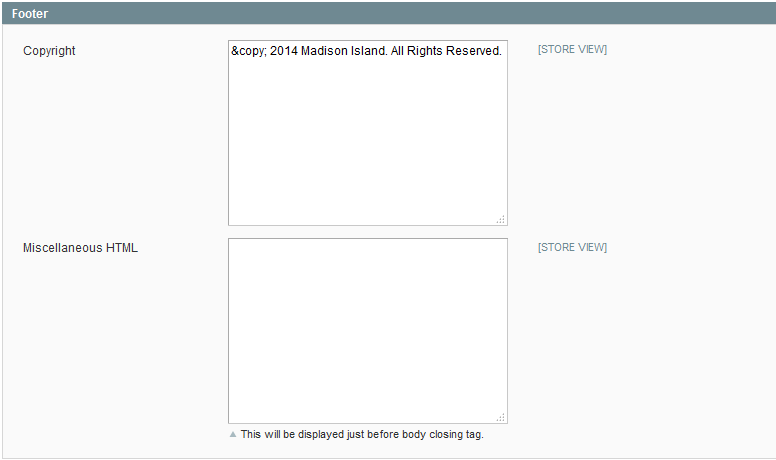

Step 7: You can also change the settings for Footer .

2.3 Theme Setting

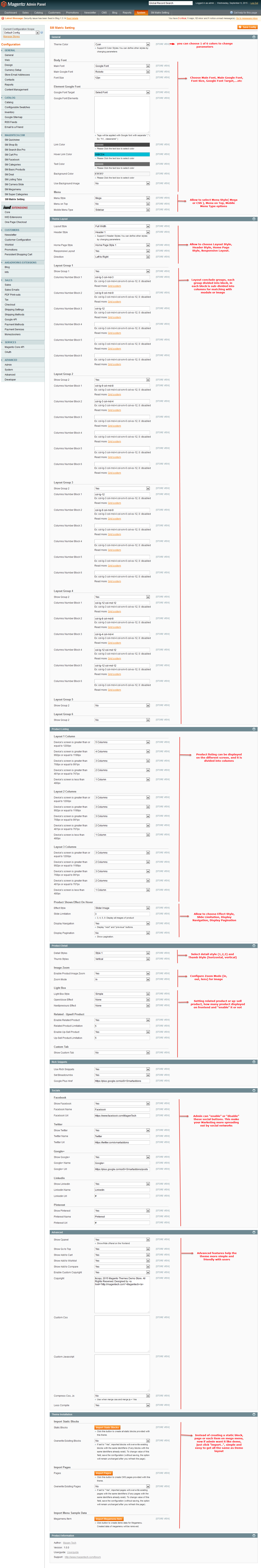

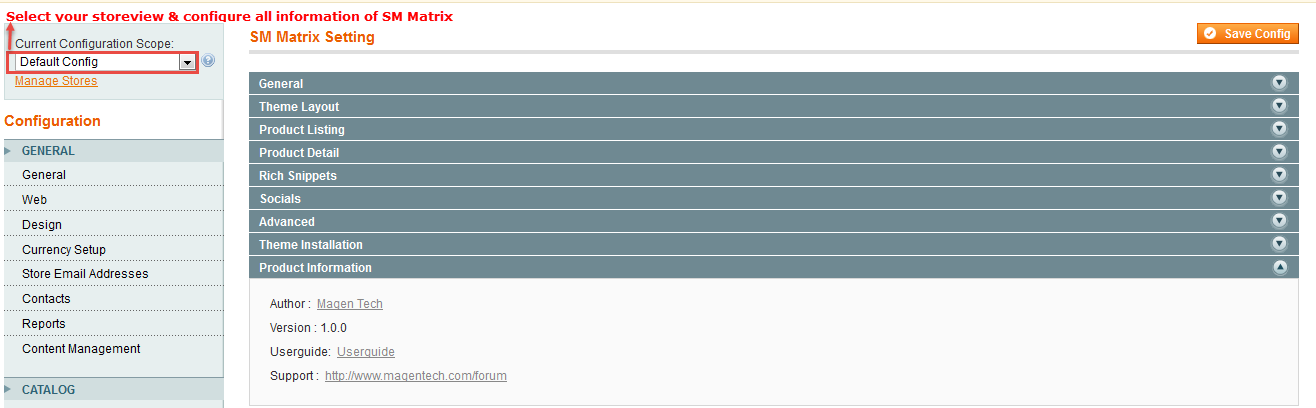

Configure SM Matrix General Setting Theme In Magento admin panel, navigate to SM Matrix Setting and configure theme as you want.

Configure General with Theme color, Font size, color for the link, hover buttons, page, text, title, background … for any store.
Configure Theme Layout with Layout style, Header style& Homepage style ( depend on Default pages on Web tab), Layout Group 1,2,3,4,5,6 to configure
Configure theProduct Listing with Layout 1 Column, Layout 2 Columns, Layout 3 Columns, Product Shows Effect On Hover, etc..
Configure theProduct Detail To zoom image of product, adjust Zoom Mode, Custom tab, and content, etc..
Configure Rich Snippets

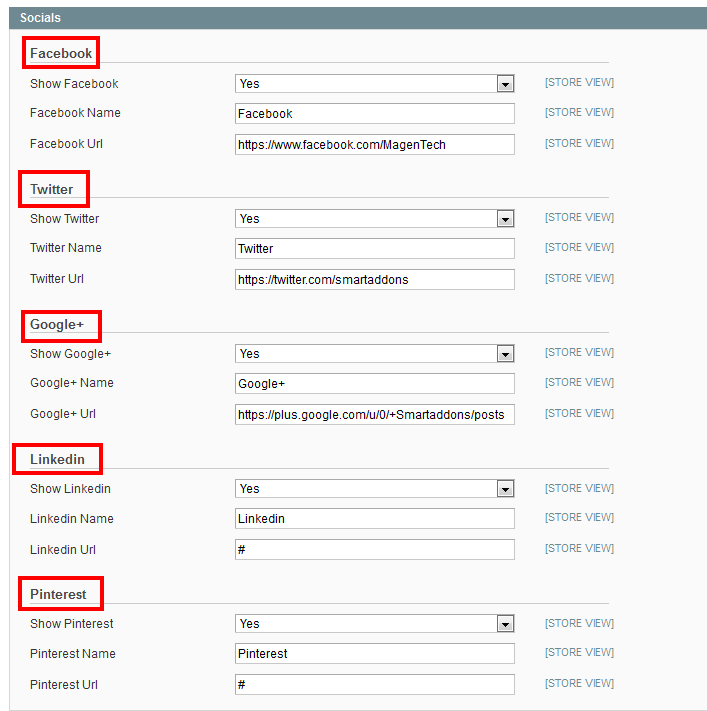

Configure Socials : To connect with social networks such as Facebook, Twitter, Google Plus, Linkedin

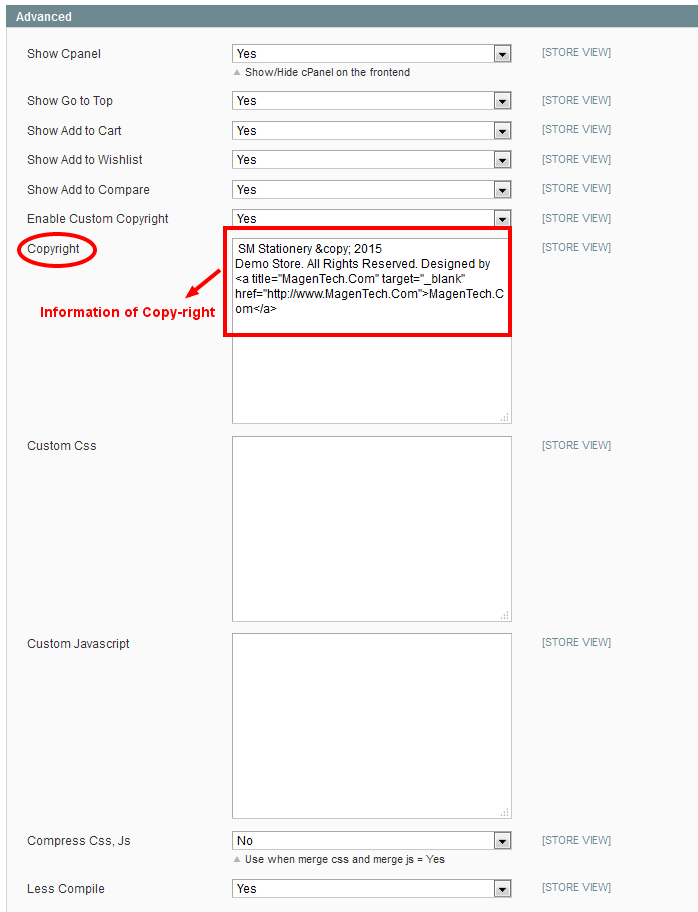

Configure Advanced : To show popup, Cpanel, use “Add to cart, Add to wishlist, Add to Compare
Configure Theme Insatallation

: To import Static blocks data and Pages data, users don’t need navigate co CMS and create one static block or page step by step.

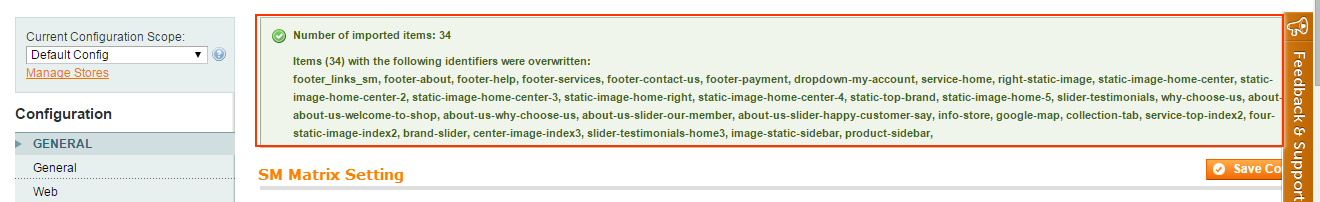

Note:To “Theme Installation”, pay attention that after clicking“Import Static Block” or “Import Pages”, the below notification will appear to announce that you import data successfully.

However, you have to come back CMS >> Static Block ( or Pages) to configure and select Store View for each Block or Page.

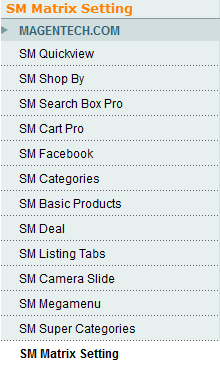

Configure Extensions In SM Matrix Setting area, below the General and Catalog fields, navigate toMagentech.com field in the left hand column to configure extensions as you want.

SM Quickview Module
SM Shop By Module
SM Search Box Pro Module

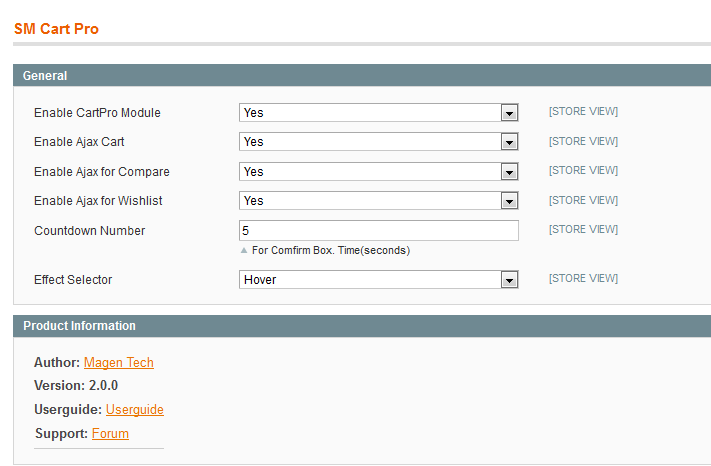

SM Cart Pro Module
SM Facebook Module
SM Categories

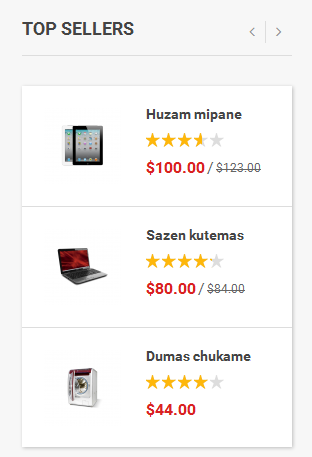

SM Basic Products

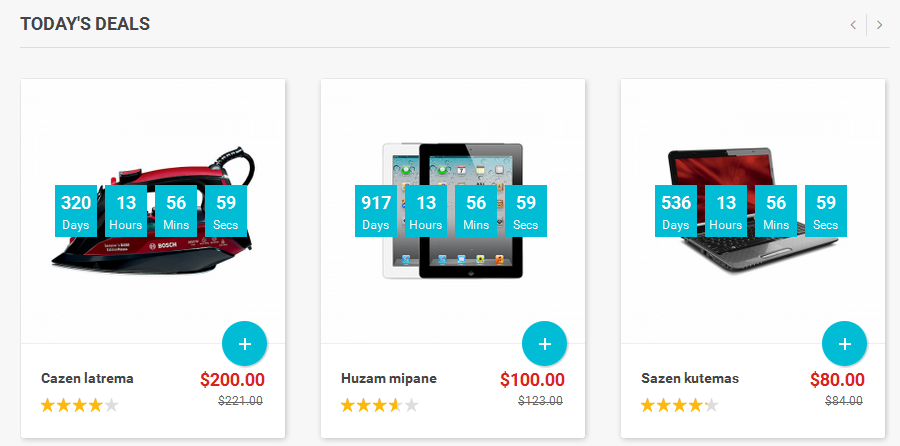

SM Deal

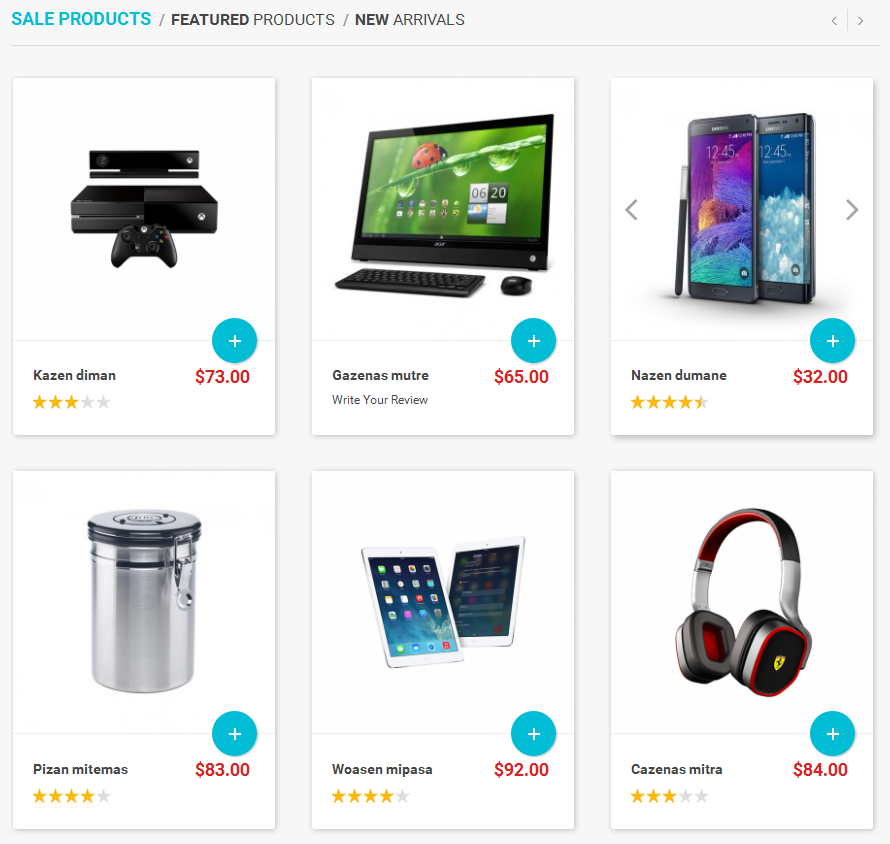

SM Listing Tabs

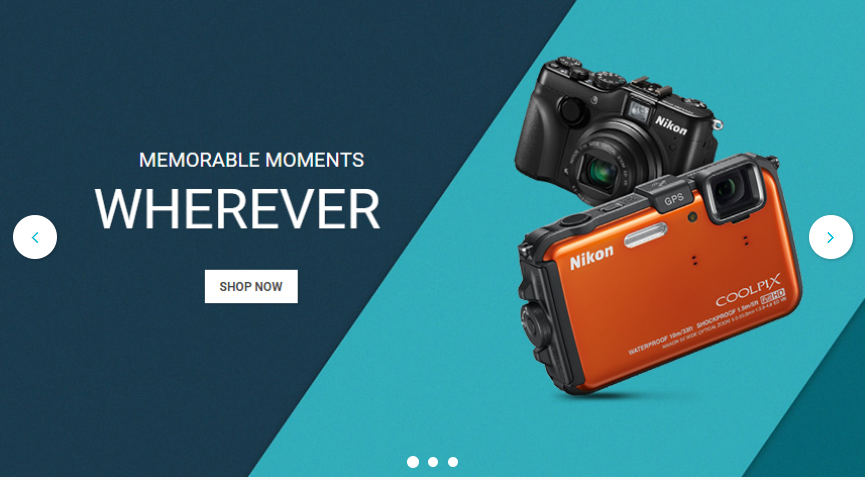

SM Camera Slide

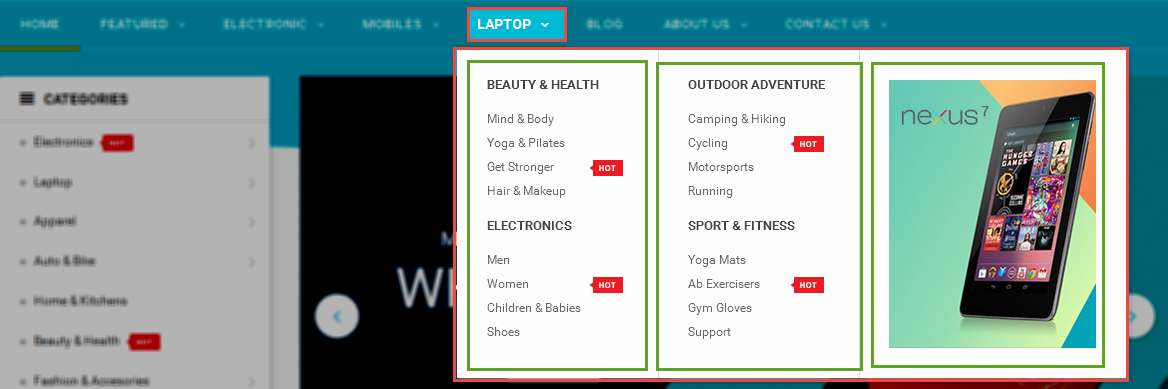

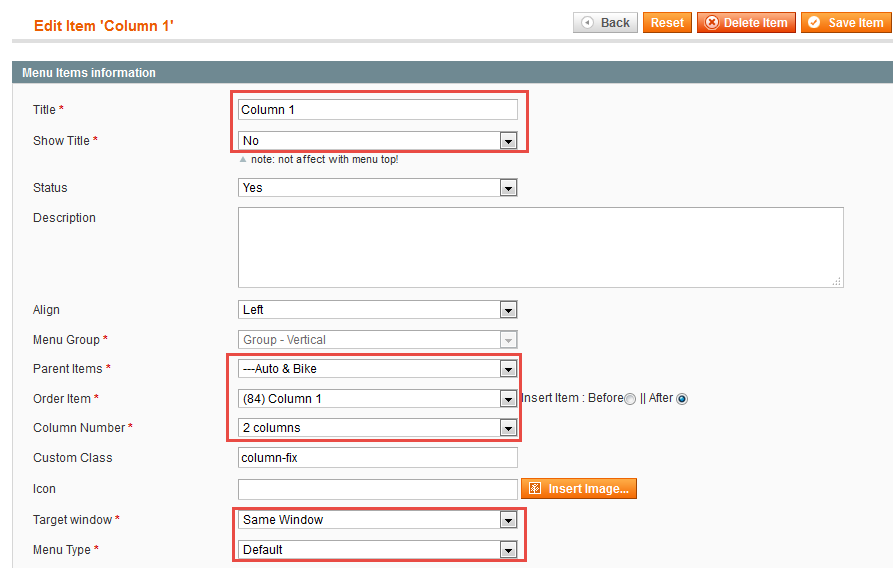

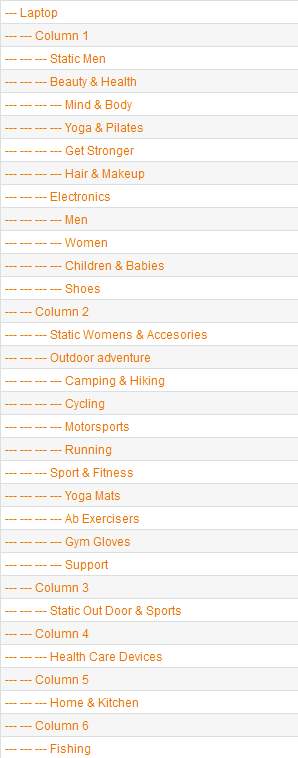

SM Megamenu
SM Super Categories
SM Matrix Setting

3CONFIGURATION – Back to top

3.1 Page Configuration

3.1.1 Homepage Style 1

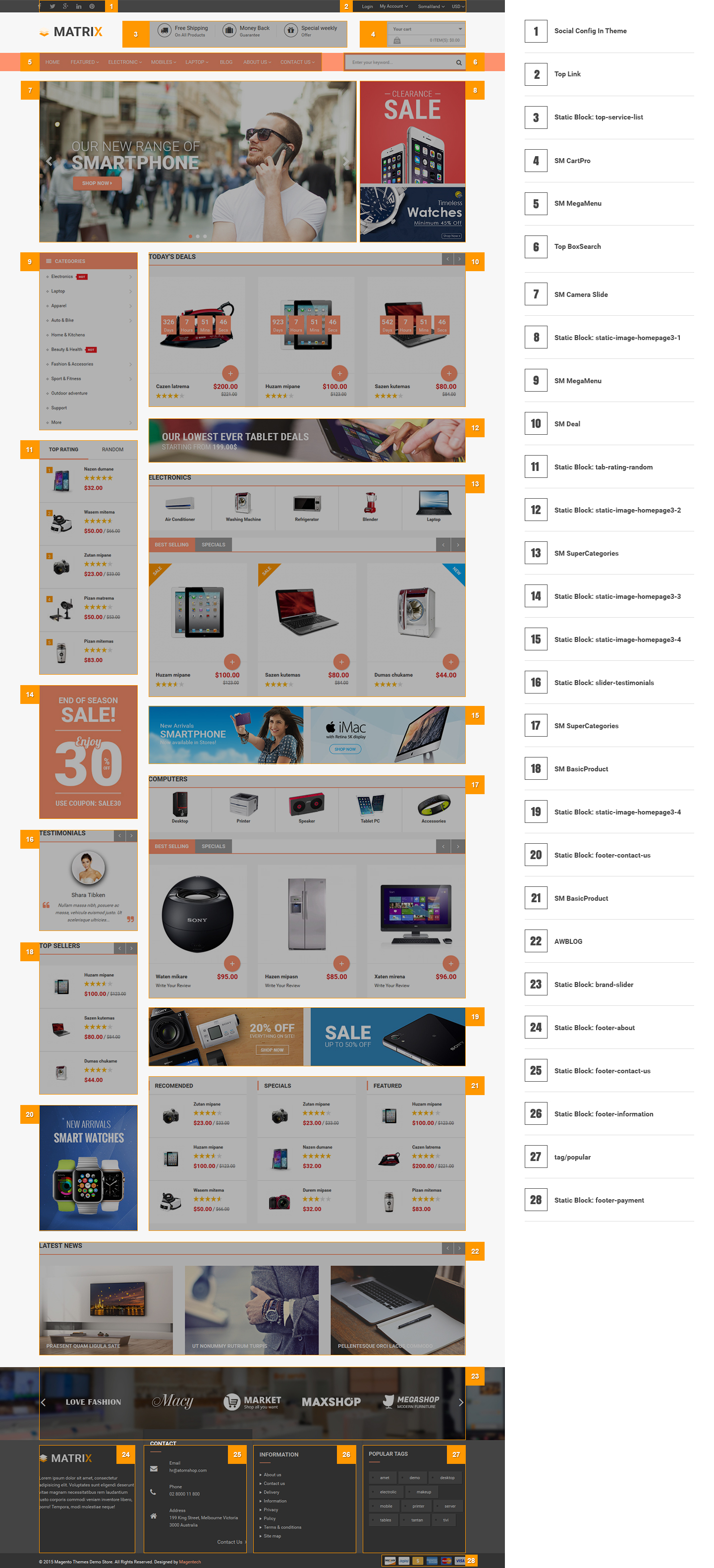

Frontend of Homepage-1 Layout Position

To configure this page, in the Admin Panel, navigate to CMS >> Pages. Create a new page in Page Management section. Here are list of configuration process for this style:

Page Information Tab: Please click to see the Backend Settings.
Content Tab: Please click to see the Backend Settings.
Design Tab: Please click to see the Backend Settings.

Copy and paste the following code into the parameter “Layout Update XML”:

<!--GROUP 1-->
<reference name="group1_col1">

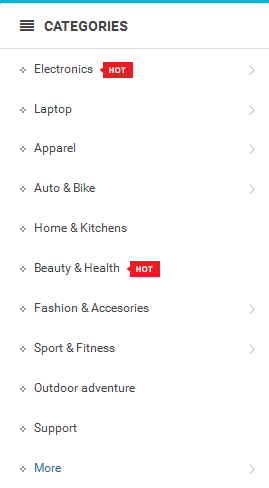

         <block type="megamenu/list" name="megamenu.list.theme.content" as="megaMenuLeft" template="sm/megamenu/megamenu-left.phtml">
		<action method="setConfig">
			<values>
                                <title>CATEGORIES</title>
			        <group_id>3</group_id>
				<theme>2</theme>
			</values>
		</action>
	</block>

</reference>

<reference name="group1_col2">

        <block type="sm_cameraslide/slide_preview" name="sm_cameraslide" as="cameraslide" ></block>

</reference>

<reference name="group1_col3">
         <block type="cms/block" name="service_top">
	        <action method="setBlockId"><block_id>service-home</block_id></action>
         </block>
</reference>

<reference name="group1_col4">

</reference>

<reference name="group1_col5">

</reference>

<reference name="group1_col6">

</reference>

<!--GROUP 2-->
<reference name="group2_col1">
         <block type="deal/list" name="deal.list.default" template="sm/deal/deal-slider.phtml"></block>

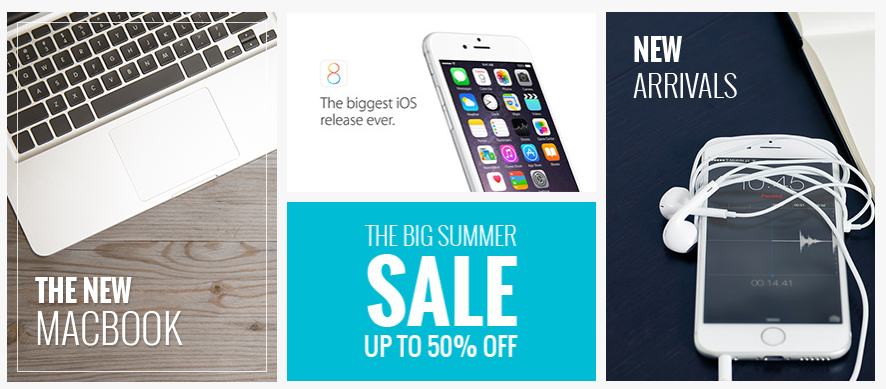

         <block type="cms/block" name="static-image-1">
	        <action method="setBlockId"><block_id>static-image-1</block_id></action>
         </block>

<block type="listingtabs/list" name="listingtabs.list.default" template="sm/listingtabs/default.phtml"></block>
</reference>

<reference name="group2_col2">

	<block type="cms/block" name="product-sidebar">
		<action method="setBlockId"><block_id>product-sidebar</block_id></action>
	</block>

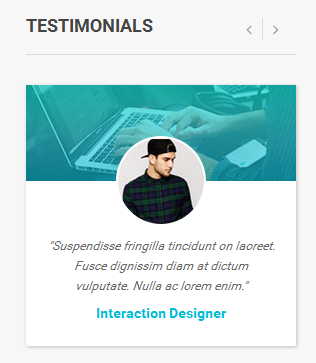

         <block type="cms/block" name="testimonial">
	        <action method="setBlockId"><block_id>slider-testimonials</block_id></action>
         </block>

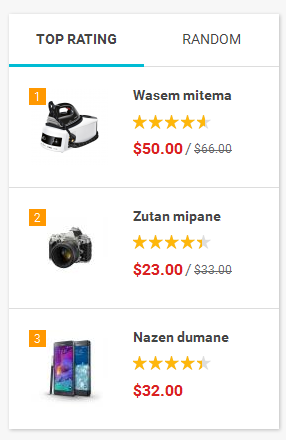

         <block type="cms/block" name="tab-rating-random">
	        <action method="setBlockId"><block_id>tab-rating-random</block_id></action>
         </block>

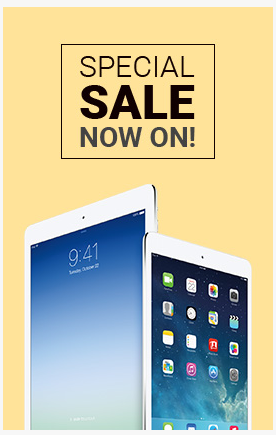

         <block type="cms/block" name="static-image-2">
	        <action method="setBlockId"><block_id>static-image-2</block_id></action>
         </block>
</reference>

<reference name="group2_col3">

</reference>

<reference name="group2_col4">

</reference>

<reference name="group2_col5">

</reference>

<reference name="group2_col6">

</reference>

<!--GROUP 3-->
<reference name="group3_col1">
         <block type="cms/block" name="brand-slider">
	        <action method="setBlockId"><block_id>brand-slider</block_id></action>
         </block>
</reference>

<reference name="group3_col2">

</reference>

<reference name="group3_col3">

</reference>

<reference name="group3_col4">

</reference>

<reference name="group3_col5">

</reference>

<reference name="group3_col6">

</reference>

<!--GROUP 4-->
<reference name="group4_col1">
         <block type="blog/menu_sidebar" name="latest_post">
                <action method="setTemplate" >
                    <template>aw_blog/latest_post.phtml</template>
                </action>
            </block>
</reference>

<reference name="group4_col2">

</reference>

<reference name="group4_col3">

</reference>

<reference name="group4_col4">

</reference>

<reference name="group4_col5">

</reference>

<reference name="group4_col6">

</reference>

<!--GROUP 5-->
<reference name="group5_col1">

</reference>

<reference name="group5_col2">

</reference>

<reference name="group5_col3">

</reference>

<reference name="group5_col4">

</reference>

<reference name="group5_col5">

</reference>

<reference name="group5_col6">

</reference>

<reference name="group6_col1">

</reference>

<reference name="group6_col2">

</reference>

<reference name="group6_col3">

</reference>

<reference name="group6_col4">

</reference>

<reference name="group6_col5">

</reference>

<reference name="group6_col6">

</reference>

<reference name="footer_mastop">

         <block type="newsletter/subscribe" name="left.newsletter" template="newsletter/subscribes.phtml"/>
</reference>

3.1.2 Homepage Style 2

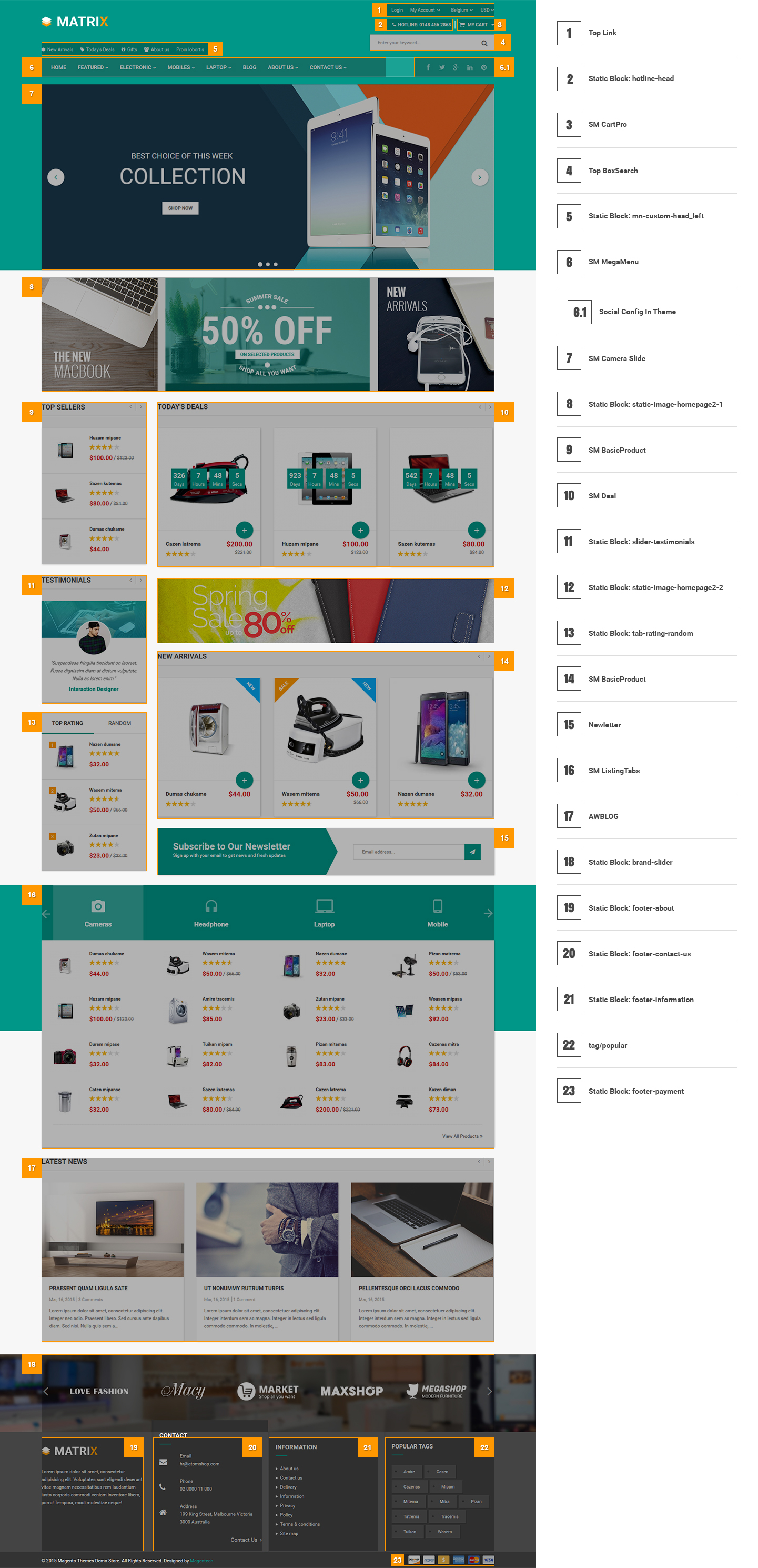

Frontend of Homepage-2 Layout Position

To configure this Homepage Style 2, in the Admin Panel, navigate to CMS >> Pages. Create a new page in Page Management section. Including 3 tabs:

Page Information Tab: Please click to see the Backend Settings.

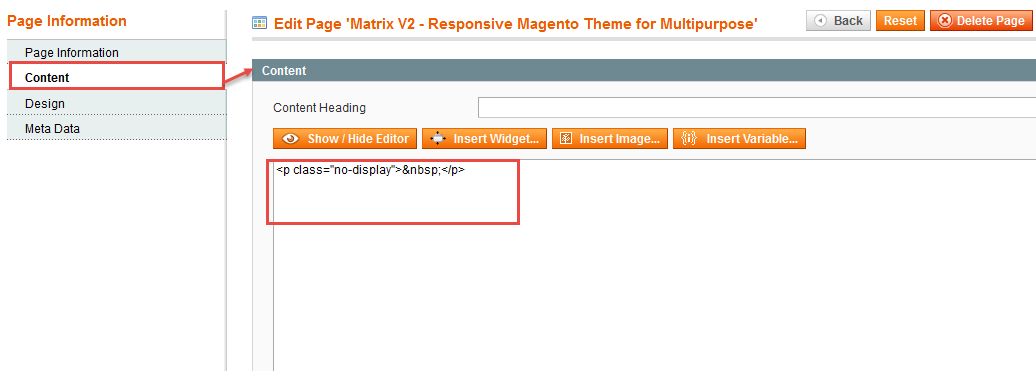

Content Tab: Please click to see the Backend Settings.

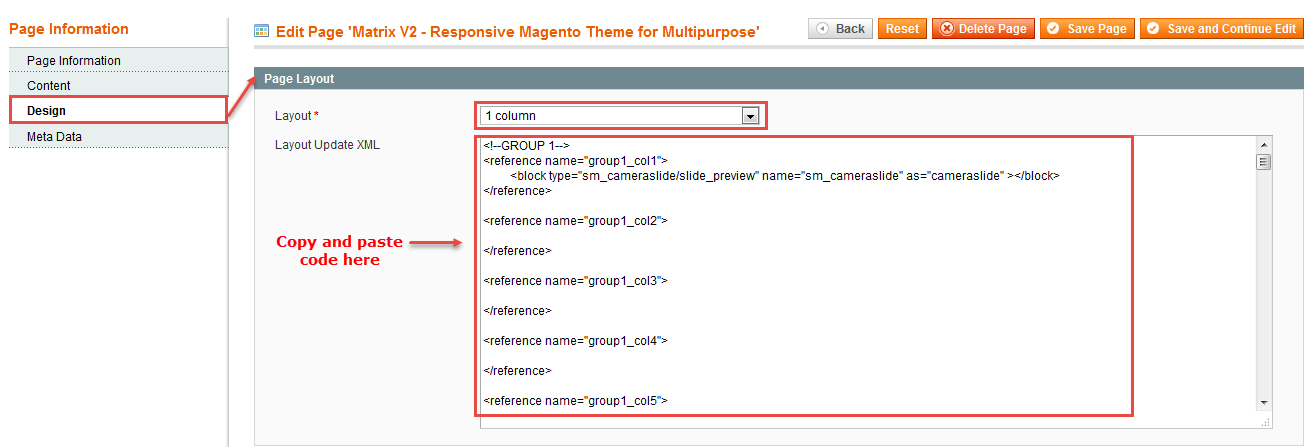

Design Tab: Please click to see the Backend Settings.

Copy and paste the following code into the parameter “Layout Update XML”:

<!--GROUP 1-->
<reference name="group1_col1">
         <block type="sm_cameraslide/slide_preview" name="sm_cameraslide" as="cameraslide" ></block>
</reference>

<reference name="group1_col2">

</reference>

<reference name="group1_col3">

</reference>

<reference name="group1_col4">

</reference>

<reference name="group1_col5">

</reference>

<reference name="group1_col6">

</reference>

<!--GROUP 2-->
<reference name="group2_col1">

         <block type="cms/block" name="static-image-homepage2-1">
	        <action method="setBlockId"><block_id>static-image-homepage2-1</block_id></action>
         </block>

</reference>

<reference name="group2_col2">

	<block type="cms/block" name="product-sidebar">
		<action method="setBlockId"><block_id>product-sidebar</block_id></action>
	</block>

         <block type="cms/block" name="testimonial">
	        <action method="setBlockId"><block_id>slider-testimonials</block_id></action>
         </block>

         <block type="cms/block" name="tab-rating-random">
	        <action method="setBlockId"><block_id>tab-rating-random</block_id></action>
         </block>

</reference>

<reference name="group2_col3">

         <block type="deal/list" name="deal.list.default" template="sm/deal/deal-slider.phtml"></block>

         <block type="cms/block" name="static-image-homepage2-2">
	        <action method="setBlockId"><block_id>static-image-homepage2-2</block_id></action>
         </block>

	<block type="basicproducts/list" name="basicproducts.slide.grid" template="sm/basicproducts/product-slide-grid.phtml">
        <action method="_setConfig">
			<values>
				<product_limitation>10</product_limitation>
				<basicproducts_title_text>NEW ARRIVALS</basicproducts_title_text>
				<product_order_dir>ASC</product_order_dir>
				<product_order_by>lastest_product</product_order_by>
				<product_title_maxlength>50</product_title_maxlength>
				<nb_column1>3</nb_column1>
				<nb_column2>2</nb_column2>
				<nb_column3>2</nb_column3>
				<nb_column4>1</nb_column4>
				<product_title_display>1</product_title_display>
				<product_price_display>1</product_price_display>
				<product_reviews_count>1</product_reviews_count>
				<product_addcart_display>1</product_addcart_display>
				<product_addwishlist_display>1</product_addwishlist_display>
				<product_addcompare_display>1</product_addcompare_display>
				<product_readmore_display>0</product_readmore_display>
				<product_description_display>0</product_description_display>
			</values>
        </action>
	</block>

	<block type="newsletter/subscribe" name="left.newsletter" template="newsletter/subscribes-index2.phtml"/>

</reference>

<reference name="group2_col4">

</reference>

<reference name="group2_col5">

</reference>

<reference name="group2_col6">

</reference>

<!--GROUP 3-->
<reference name="group3_col1">

<block type="listingtabs/list" name="listingtabs.list.default.list" template="sm/listingtabs/default_list.phtml"></block>

</reference>

<reference name="group3_col2">

</reference>

<reference name="group3_col3">

</reference>

<reference name="group3_col4">

</reference>

<reference name="group3_col5">

</reference>

<reference name="group3_col6">

</reference>

<!--GROUP 4-->
<reference name="group4_col1">
         <block type="blog/menu_sidebar" name="latest_post_slide">
                <action method="setTemplate" >
                    <template>aw_blog/latest_post_index2.phtml</template>
                </action>
            </block>
</reference>

<reference name="group4_col2">

</reference>

<reference name="group4_col3">

</reference>

<reference name="group4_col4">

</reference>

<reference name="group4_col5">

</reference>

<reference name="group4_col6">

</reference>

<!--GROUP 5-->
<reference name="group5_col1">

</reference>

<reference name="group5_col2">

</reference>

<reference name="group5_col3">

</reference>

<reference name="group5_col4">

</reference>

<reference name="group5_col5">

</reference>

<reference name="group5_col6">

</reference>

<reference name="group6_col1">

</reference>

<reference name="group6_col2">

</reference>

<reference name="group6_col3">

</reference>

<reference name="group6_col4">

</reference>

<reference name="group6_col5">

</reference>

<reference name="group6_col6">

</reference>

<reference name="footer_mastop">

         <block type="cms/block" name="brand-slider">
	        <action method="setBlockId"><block_id>brand-slider</block_id></action>
         </block>

</reference>

3.1.3 Homepage Style 3

Frontend of Homepage-3 Layout Position

Similarly to Homepage style 2, to configure this page, in the Admin Panel, navigate to CMS >> Pages. Create a new page in Page Management section with the following tabs:

Page Information Tab: Please click to see the Backend Settings.
Content Tab: Please click to see the Backend Settings.
Design Tab: Please click to see the Backend Settings.

Copy and paste the following code into the parameter “Layout Update XML”:

<!--GROUP 1-->
<reference name="group1_col1">

        <block type="sm_cameraslide/slide_preview" name="sm_cameraslide" as="cameraslide" ></block>

</reference>

<reference name="group1_col2">

         <block type="cms/block" name="static-image-homepage3-1">
	        <action method="setBlockId"><block_id>static-image-homepage3-1</block_id></action>
         </block>

</reference>

<reference name="group1_col3">

</reference>

<reference name="group1_col4">

</reference>

<reference name="group1_col5">

</reference>

<reference name="group1_col6">

</reference>

<!--GROUP 2-->
<reference name="group2_col1">

         <block type="megamenu/list" name="megamenu.list.theme.content" as="megaMenuLeft" template="sm/megamenu/megamenu-left.phtml">
		<action method="setConfig">
			<values>
                                <title>CATEGORIES</title>
			        <group_id>3</group_id>
				<theme>2</theme>
			</values>
		</action>
	</block>

         <block type="cms/block" name="tab-rating-random-index3">
	        <action method="setBlockId"><block_id>tab-rating-random-index3</block_id></action>
         </block>

         <block type="cms/block" name="static-image-homepage3-3">
	        <action method="setBlockId"><block_id>static-image-homepage3-3</block_id></action>
         </block>

         <block type="cms/block" name="slider-testimonials-home3">
	        <action method="setBlockId"><block_id>slider-testimonials-home3</block_id></action>
         </block>

	<block type="cms/block" name="product-sidebar">
		<action method="setBlockId"><block_id>product-sidebar</block_id></action>
	</block>

			<block type="cms/block" after="tab-related-upsell" name="image-sidebar-view">
				<action method="setBlockId"><block_id>image-static-sidebar-view</block_id></action>
			</block>

</reference>

<reference name="group2_col2">

         <block type="deal/list" name="deal.list.default" template="sm/deal/deal-slider.phtml"></block>

         <block type="cms/block" name="static-image-homepage3-2">
	        <action method="setBlockId"><block_id>static-image-homepage3-2</block_id></action>
         </block>

<block type="supercategories/list" name="supercategories.list.default" template="sm/supercategories/default.phtml">
			</block>

         <block type="cms/block" name="static-image-homepage3-4">
	        <action method="setBlockId"><block_id>static-image-homepage3-4</block_id></action>
         </block>

<block type="supercategories/list" name="supercategories.list.default.computer" template="sm/supercategories/default.phtml">
                 <action method="_setConfig">
			<values>
				<product_category>89</product_category>
			</values>
                 </action>
	</block>

         <block type="cms/block" name="static-image-homepage3-5">
	        <action method="setBlockId"><block_id>static-image-homepage3-5</block_id></action>
         </block>

         <block type="cms/block" name="box-3columns-index3">
	        <action method="setBlockId"><block_id>box-3columns-index3</block_id></action>
         </block>

</reference>

<reference name="group2_col3">

</reference>

<reference name="group2_col4">

</reference>

<reference name="group2_col5">

</reference>

<reference name="group2_col6">

</reference>

<!--GROUP 3-->
<reference name="group3_col1">

</reference>

<reference name="group3_col2">

</reference>

<reference name="group3_col3">

</reference>

<reference name="group3_col4">

</reference>

<reference name="group3_col5">

</reference>

<reference name="group3_col6">

</reference>

<!--GROUP 4-->
<reference name="group4_col1">
         <block type="blog/menu_sidebar" name="latest_post_slide">
                <action method="setTemplate" >
                    <template>aw_blog/latest_post_index2.phtml</template>
                </action>
            </block>
</reference>

<reference name="group4_col2">

</reference>

<reference name="group4_col3">

</reference>

<reference name="group4_col4">

</reference>

<reference name="group4_col5">

</reference>

<reference name="group4_col6">

</reference>

<!--GROUP 5-->
<reference name="group5_col1">

</reference>

<reference name="group5_col2">

</reference>

<reference name="group5_col3">

</reference>

<reference name="group5_col4">

</reference>

<reference name="group5_col5">

</reference>

<reference name="group5_col6">

</reference>

<reference name="group6_col1">

</reference>

<reference name="group6_col2">

</reference>

<reference name="group6_col3">

</reference>

<reference name="group6_col4">

</reference>

<reference name="group6_col5">

</reference>

<reference name="group6_col6">

</reference>

<reference name="footer_mastop">

         <block type="cms/block" name="brand-slider">
	        <action method="setBlockId"><block_id>brand-slider</block_id></action>
         </block>

</reference>

3.2 Configure Mega Menu

Step 1: You need to create Menu group. In Admin Panel, navigate to SM Mega Menu >> Menu Manager >> Add group (add 2 groups: “Group – Horizontal” – have id 1 and “Group – Vertical” – have id 3), Two id will be shown in Configuration of SM Mega Menu.

Step 2: Navigate to SM Mega Menu >> Configuration & fill the id number for two above groups in step 1

Step 3: In order to add menu items, Go to SM Mega Menu >> Menu items Manager to add items as you want.

3.2.1 With Horizontal Mega Menu:

Horizontal-mega-menu

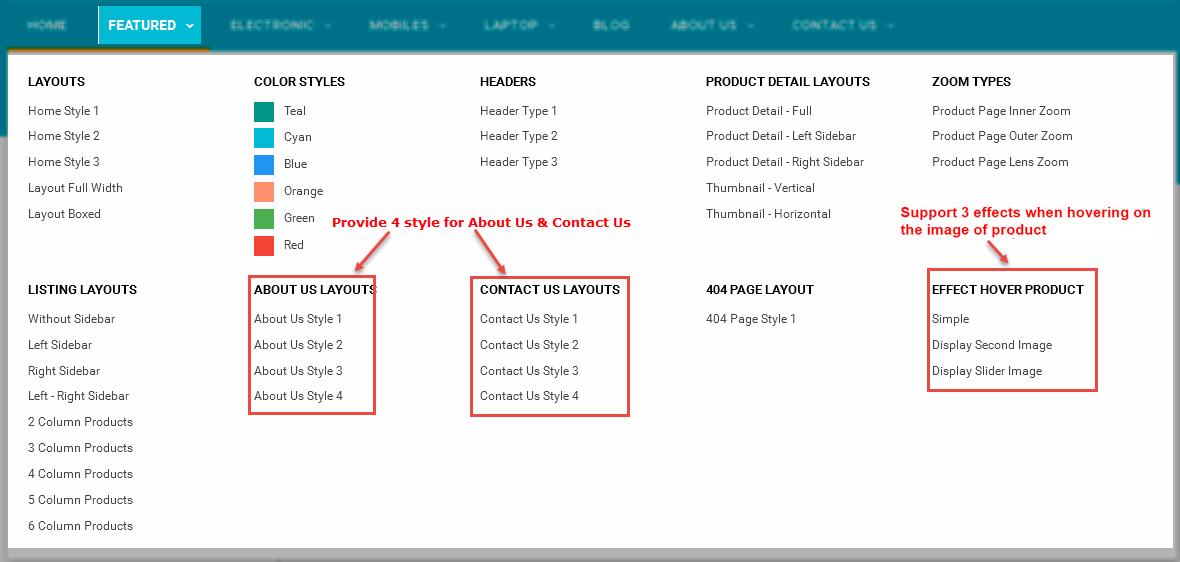

Featured Menu
Frontend Appearance

Link show Featured Menu’s backend. Please click Here to view.

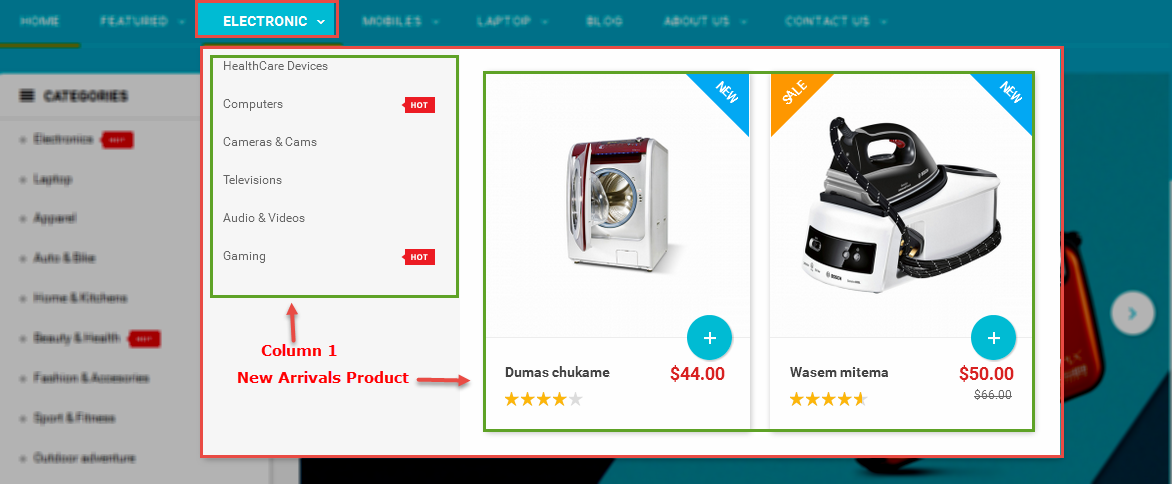

Electronic Menu

Frontend Appearance

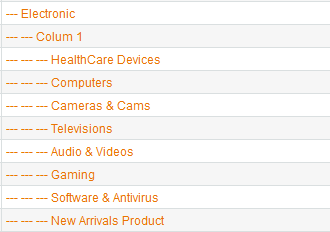

Tree of Electronic Menu:

Backend Settings of Electronic Menu

Note:Electronic Menu: To config this page, please navigate to SM Matrix setting >> SM Mega Menu >> Menu Items Manager

Item: “Colum 1”— Menu Backend Settings

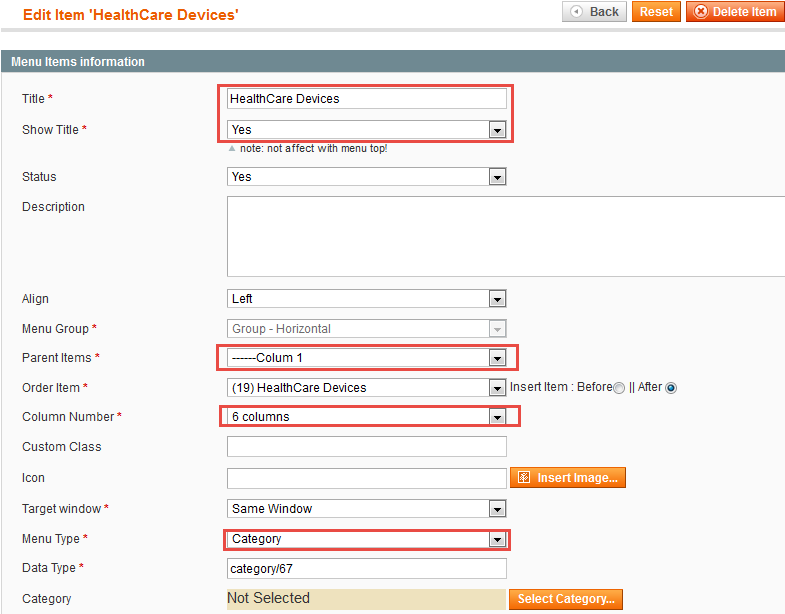

Item: “HealthCare Devices”— Menu Backend Settings

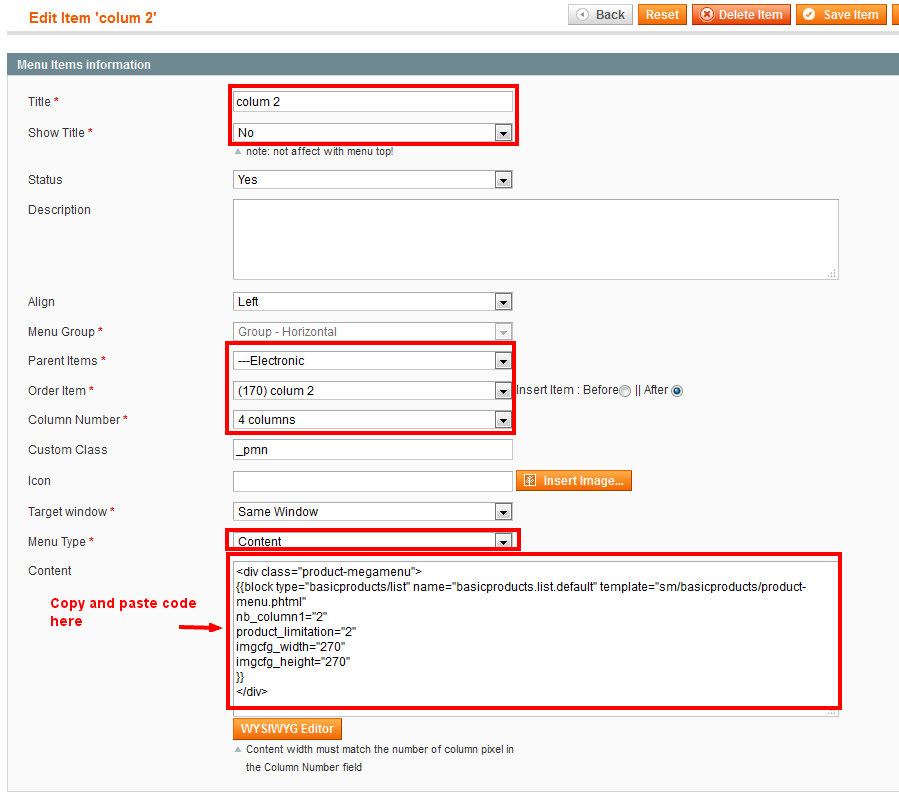

Item: “Colum 2”— Menu Backend Settings

Note: Coppy & paste the following code chain into tab “content”:

<div class="product-megamenu">
{{block type="basicproducts/list" name="basicproducts.list.default" template="sm/basicproducts/product-menu.phtml"
nb_column1="2"
product_limitation="2"
imgcfg_width="270"
imgcfg_height="270"
}}
</div>

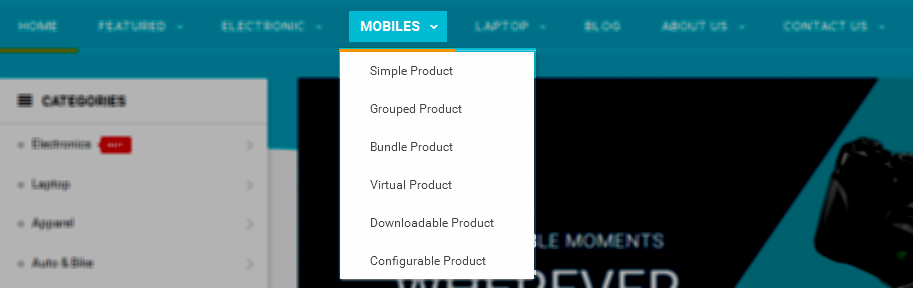

Mobiles Menu

Frontend Appearance
Tree of Mobiles Menu:

Note: Mobiles Menu: To config this page, please navigate to SM Matrix setting >> SM Mega Menu >> Menu Items Manager

Backend Settings of Mobiles Menu

Item: “Simple Product”— Menu Backend Settings

Laptop Menu

Frontend Appearance
Tree of Laptop Menu:

Backend Settings of Laptop Menu

Note:Laptop Menu: To config this page, please navigate to SM Matrix setting >> SM Mega Menu >> Menu Items Manager

Item: “Colum1”— Menu Backend Settings

Item: “Beauty & Health”— Menu Backend Settings

Item: “Mind & Body”— Menu Backend Settings

Item: “Colum3”— Menu Backend Settings

About Us Menu

Frontend Appearance
Tree of About Us Menu:

Backend Settings of About Us Menu

Note:About Us Menu: To config this page, please navigate to SM Matrix setting >> SM Mega Menu >> Menu Items Manager

Item: “About Us Style Demo”— Menu Backend Settings

Note: Coppy & paste the following code chain into tab “content”:

<div class="drop-content">
<div class="item">
<a title="About Us Style 1" href="{{store url="about-us.html/?___store=default&amp;___from_store=argentina"}}">About Us Style 1</a>
</div>
<div class="item">
<a title="About Us Style 2" href="{{store url="about-us.html/?___store=french&amp;___from_store=default"}}">About Us Style 2</a>
</div>
<div class="item">
<a title="About Us Style 3" href="{{store url="about-us.html/?___store=german&amp;___from_store=default"}}">About Us Style 3</a>
</div>
<div class="item">
<a title="About Us Style 4" href="{{store url="about-us.html/?___store=argentina&amp;___from_store=default"}}">About Us Style 4</a>
</div>
</div>

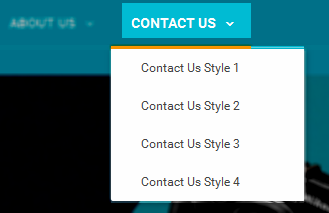

Contact Us Menu

Frontend Appearance
Tree of Contact Us Menu:

Backend Settings of Contact Us Menu

Note:Contact Us Menu: To config this page, please navigate to SM Matrix setting >> SM Mega Menu >> Menu Items Manager

Item: “Contact Style Demo”— Menu Backend Settings

Note: Coppy & paste the following code chain into tab “content”:

<div class="drop-content">
	<div class="item">
		<a title="Contact Us Style 1" href="{{store url="contact-us.html/?___store=default&amp;___from_store=argentina"}}">Contact Us Style 1</a>
	</div>
	<div class="item">
		<a title="Contact Us Style 2" href="{{store url="contact-us.html/?___store=french&amp;___from_store=default"}}">Contact Us Style 2</a>
	</div>
	<div class="item">
		<a title="Contact Us Style 3" href="{{store url="contact-us.html/?___store=german&amp;___from_store=default"}}">Contact Us Style 3</a>
	</div>
	<div class="item">
		<a title="Contact Us Style 4" href="{{store url="contact-us.html/?___store=argentina&amp;___from_store=default"}}">Contact Us Style 4</a>
	</div>
</div>

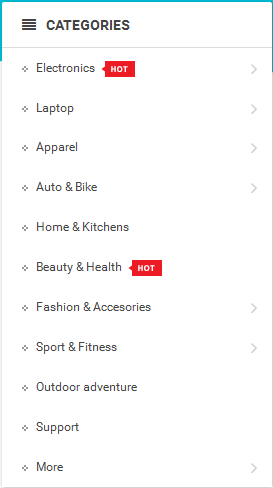

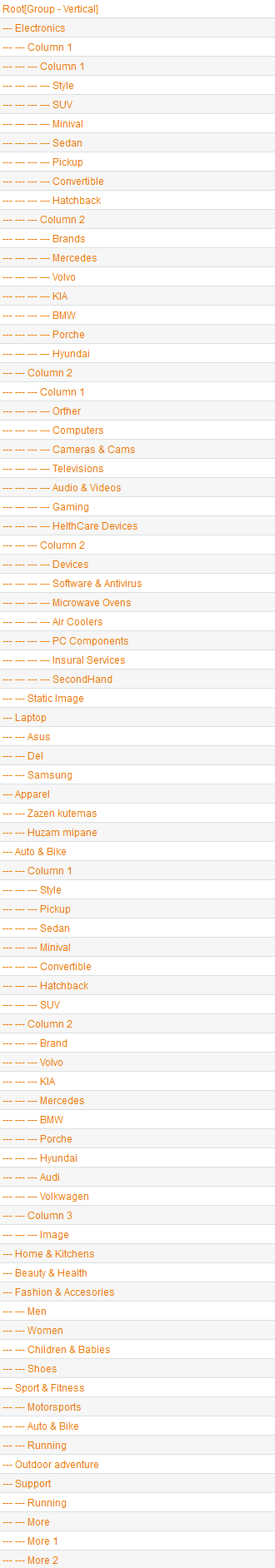

3.2.2 With Vertical Mega Menu ( In The Homepage 1)

Vertical Mega menu includes 10 items:

Electronics
Laptop
Apparel
Auto & Bike
Home & Kitchens
Beauty & Health
Fashion & Accesories
Sport & Fitness
Outdoor adventure
Support

Frontend Appearance

Backend Appearance

Electronics

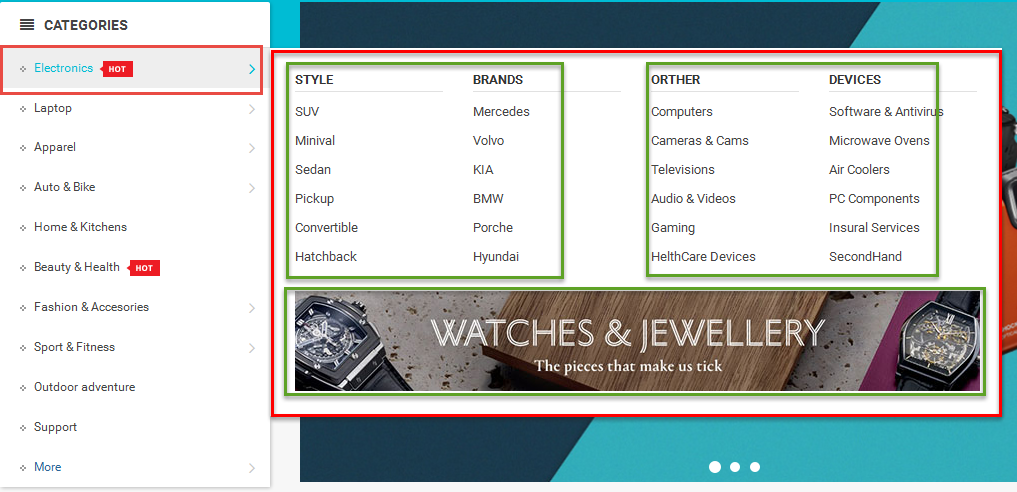

Frontend Appearance

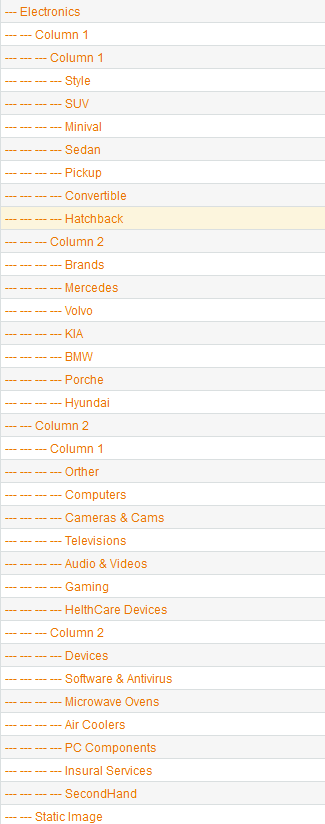

Tree of Electronics:

Backend Settings of Electronics

Note: To configure these sub-items inside this category, we do as following tasks:

Item: “Column 1”— Menu Backend Settings
Item: “Column 1 1”— Menu Backend Settings
Item: “Style”— Menu Backend Settings
Item: “Static Image”— Menu Backend Settings

Note: Coppy & paste the following code chain into tab “content”:

<div class="static-bottom-menu">
<a href="#" title="Static Image"><img src="{{media url="wysiwyg/image-cat/image-megamenu.jpg"}}" alt="Static Image" /></a>
</div>

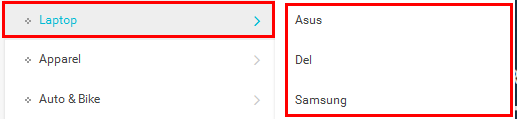

Laptop
Frontend Appearance

Tree of Laptop:

Backend Settings of Laptop

Item: “Asus”— Menu Backend Settings

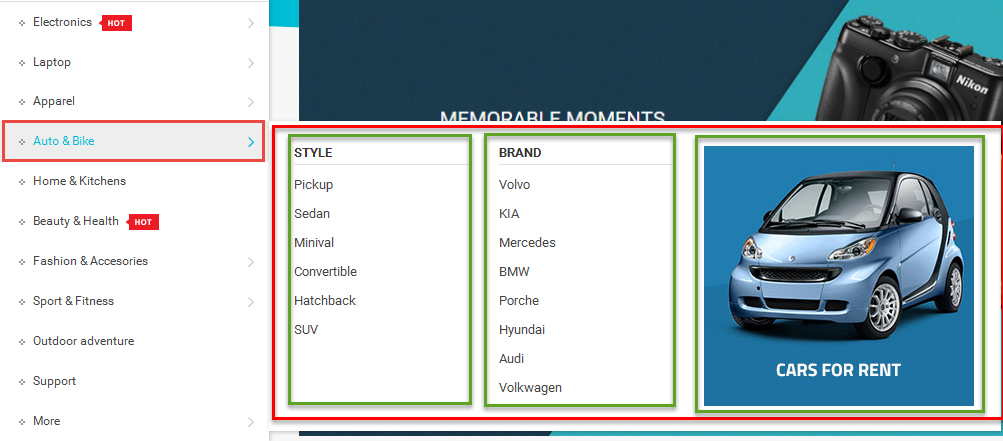

Auto & Bike
Frontend Appearance

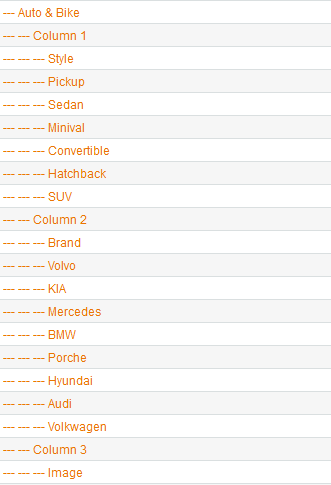

Tree of Auto & Bike:

Backend Settings of Auto & Bike

Note: To configure these sub-items inside this category, we do as following tasks:

Item: “Column 1”— Menu Backend Settings
Item: “Style”— Menu Backend Settings
Item: “Image”— Menu Backend Settings

Note: Coppy & paste the following code chain into tab “content”:

<div class="cat-image">
<a title="Static Image" href="#"><img src="{{media url="wysiwyg/image-cat/img-cart-item.jpg"}}" alt="Static Image" /></a>
</div>

Other items in vertical menu are configured the same as above items.

3.3 Configure Extensions

The SM Matrix front-page has been integrated with extensions in the Theme as following list:

SM-CartPro
SM-MegaMenu
SM-MegaMenu
SM-Camera Slide
SM-Deal
SM-Basic Products
SM-Listing Tabs

I. SM CartPro

Position: SM CartPro
Frontend Appearance

Backend of SM CartPro: Click Here
Go Here to readmore about the SM CartPro module.

II. SM Mega Menu

Position: SM Mega Menu
Frontend Appearance

Backend of SM Mega Menu: Click Here
Go Here to readmore about the SM Mega Menu module.

III. SM Mega Menu 2

Position: SM Mega Menu
Frontend Appearance

Backend of SM Mega Menu: Click Here
Go Here to readmore about the SM Mega Menu module.

IV. SM Camera Slide

Position: SM Camera Slide
Frontend Appearance

Backend of SM Camera Slide: Click Here
Go Here to readmore about the SM Camera Slide module.

V. SM Deal

Position: SM Deal
Frontend Appearance

Backend of SM Deal: Click Here
Go Here to readmore about the SM Deal module.

VI. SM Basic Products

Position: SM Basic Products
Frontend Appearance

Backend of SM Basic Products: Click Here
Go Here to readmore about the SM Basic Products module.

VII. SM Listing Tabs

Position: SM Listing Tabs
Frontend Appearance

Backend of Listing Tabs : Click Here
Go Here to readmore about the SM Listing Tabs module.

3.4 Configure Static Blocks

The SM Matrix front-page has static blocks in the Theme:

Static-Service-Home
Static-Image-1
Static-Slider-testimoials
Static-Tab-Rating-Random
Static-image-2

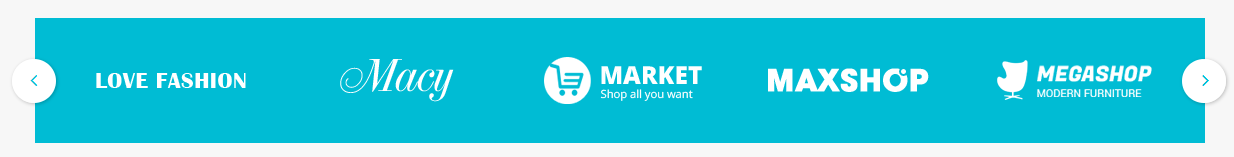

Static-Brand-slider

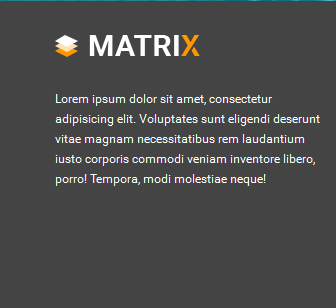

Static-Footer-about

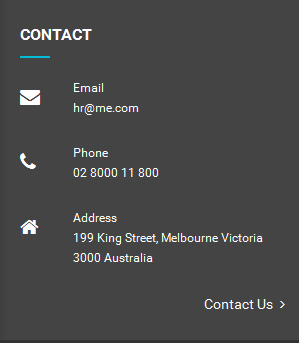

Static-Footer-contact-us

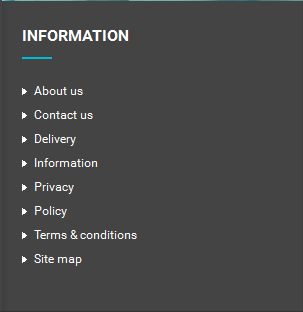

Static-Footer-information
Static-Footer-payment

To create a new static block, go to CMS >> Static Blocks >> Add new block

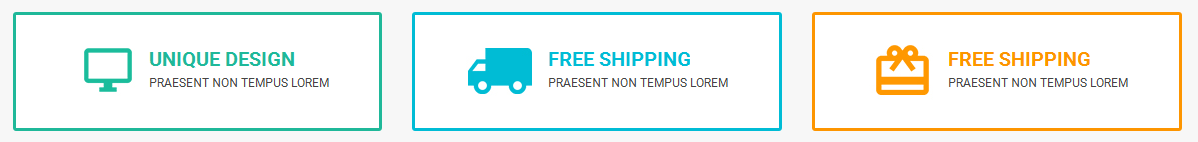

1. Static-Service-Home

To create static blocks, go to CMS >> Static Blocks with Identifier * : “service-home”

Frontend

Backend Setting

Coppy & paste the code chain for Content of Service-Home:

<div class="service-block">
	<ul class="list-service">
		<li>
			<div class="border-eff">
				<div class="inner">
					<div class="icon">
						<a href="#" title="Unique Design"><img src="{{media url="wysiwyg/home-page-image/service1.jpg"}}" alt="" /></a>
					</div>
					<div class="info">
						<p class="title"><a href="#">UNIQUE DESIGN</a></p>
						<p class="desc">Praesent non tempus lorem</p>
					</div>
				</div>
			</div>
		</li>

		<li>
			<div class="border-eff">
				<div class="inner">
					<div class="icon">
						<a href="#" title="Free Shipping"><img src="{{media url="wysiwyg/home-page-image/service2.jpg"}}" alt="" /></a>
					</div>
					<div class="info">
						<p class="title"><a href="#">Free Shipping</a></p>
						<p class="desc">Praesent non tempus lorem</p>
					</div>
				</div>
			</div>
		</li>

		<li>
			<div class="border-eff">
				<div class="inner">
					<div class="icon">
						<a href="#" title="Free Shipping"><img src="{{media url="wysiwyg/home-page-image/service3.jpg"}}" alt="" /></a>
					</div>
					<div class="info">
						<p class="title"><a href="#">Free Shipping</a></p>
						<p class="desc">Praesent non tempus lorem</p>
					</div>
				</div>
			</div>
		</li>
	</ul>
</div>

2. Static-Image-1

To add this static block, first go to CMS then click Static Blocks and create a new one with Identifier * : “image-1”

Frontend

Backend Setting

Coppy & paste the code chain for Content of Static-Image-1:

<div class="static-image static-image-1">
	<div class="list-image-static list-3columns">
		<div class="image-column-1">
			<div class="border-eff">
				<div class="inner">
					<a href="#" title="Static Image">
						<img src="{{media url="wysiwyg/home-page-image/static-image-home-1.jpg"}}" alt="" />
					</a>
				</div>
			</div>
		</div>

		<div class="image-column-2">
			<div class="border-eff">
				<div class="inner">
					<a href="#" title="Static Image">
						<img src="{{media url="wysiwyg/home-page-image/static-image-home-2.jpg"}}" alt="" />
					</a>
				</div>
			</div>
			<div class="border-eff">
				<div class="inner">
					<a href="#" title="Static Image">
						<img src="{{media url="wysiwyg/home-page-image/static-image-home-3.jpg"}}" alt="" />
					</a>
				</div>
			</div>
		</div>

		<div class="image-column-3">
			<div class="border-eff">
				<div class="inner">
					<a href="#" title="Static Image">
						<img src="{{media url="wysiwyg/home-page-image/static-image-home-4.jpg"}}" alt="" />
					</a>
				</div>
			</div>
		</div>
	</div>
</div>

3. Static-Slider-testimoials

To add this static block, first go to CMS then click Static Blocks and create a new one with Identifier * : “slider-testimoials”

Frontend

Backend Setting

Coppy & paste the code chain for Content of Static-Slider-testimoials:

<div class="overflow-slider testimonials">
	<div class="title-home">
		<h2>Testimonials</h2>
	</div>

	<div class="margin-slider">
		<ul class="testimonials-slider">
			<li class="item">
				<div class="client-child client-left">
					<div class="image-client">
						<img src="{{media url="wysiwyg/testimonial/clien1.jpg"}}" alt="Venus" />
					</div>

					<div class="comment">
						"Suspendisse fringilla tincidunt on laoreet. Fusce dignissim diam at dictum vulputate. Nulla ac lorem enim."
					</div>

					<div class="info-client">
						<h2 class="client-name">Interaction Designer</h2>
					</div>
				</div>
			</li>
			<li class="item">
				<div class="client-child client-left">
					<div class="image-client">
						<img src="{{media url="wysiwyg/testimonial/clien2.jpg"}}" alt="Venus" />
					</div>

					<div class="comment">
						"Suspendisse fringilla tincidunt on laoreet. Fusce dignissim diam at dictum vulputate. Nulla ac lorem enim."
					</div>

					<div class="info-client">
						<h2 class="client-name">Interaction Designer</h2>
					</div>
				</div>
			</li>
			<li class="item">
				<div class="client-child client-left">
					<div class="image-client">
						<img src="{{media url="wysiwyg/testimonial/clien3.jpg"}}" alt="Venus" />
					</div>

					<div class="comment">
						"Suspendisse fringilla tincidunt on laoreet. Fusce dignissim diam at dictum vulputate. Nulla ac lorem enim."
					</div>

					<div class="info-client">
						<h2 class="client-name">Interaction Designer</h2>
					</div>
				</div>
			</li>
		</ul>
	</div>

	<script>
		jQuery(document).ready(function($) {
			var owl_testimonial = $(".testimonials-slider");
			owl_testimonial.owlCarousel({
				responsive:{
					0:{
						items:1
					},
					480:{
						items:1
					},
					768:{
						items:1
					},
					992:{
						items:1
					},
					1200:{
						items:1
					}
				},

				autoplay:false,
				loop:true,
				nav : true, // Show next and prev buttons
				dots: false,
				autoplaySpeed : 500,
				navSpeed : 500,
				dotsSpeed : 500,
				autoplayHoverPause: true,
				margin:30,
			});
		});

	</script>
</div>

4. Static-Tab-Rating-Random

To add this static block, first go to CMS then click Static Blocks and create a new one with Identifier * : “tab-rating-random”

Frontend

Backend Setting

Coppy & paste the code chain for Content of Static-Tab-Rating-Random:

<div class="block block-tab tab-rating-random">
	<ul class="nav nav-tabs" id="tab_rating_random">
		<li class="active"><a href="#rating">Top Rating</a></li>
		<li><a href="#random">Random</a></li>
	</ul>

	<div class="tab-content">
		<div id="rating" class="tab-pane fade in active">
{{block type="basicproducts/list" name="basicproducts.list.tab.rating" template="sm/basicproducts/basic-product-list.phtml"
			product_limitation="3"
			product_order_dir="ASC"
			product_order_by="top_rating"
			product_title_maxlength="50"
			product_title_display="1"
			product_price_display="1"
			product_reviews_count="1"
			imgcfg_width="77"
			imgcfg_height="77"
			product_addwishlist_display="0"
			product_addcompare_display="0"
			product_readmore_display="0"
			product_description_display="0"
			product_addcart_display="0"
			product_addwishlist_display="0"
			product_addcompare_display="0"
}}
		</div>
		<div id="random" class="tab-pane fade">
{{block type="basicproducts/list" name="basicproducts.list.tab.random" template="sm/basicproducts/basic-product-list.phtml"
			product_limitation="3"
			product_order_dir="ASC"
			product_order_by="random"
			product_title_maxlength="50"
			product_title_display="1"
			product_price_display="1"
			product_reviews_count="1"
			imgcfg_width="77"
			imgcfg_height="77"
			product_addwishlist_display="0"
			product_addcompare_display="0"
			product_readmore_display="0"
			product_description_display="0"
			product_addcart_display="0"
			product_addwishlist_display="0"
			product_addcompare_display="0"
}}
		</div>
	</div>
</div>

5. Static-image-2

To add this static block, first go to CMS then click Static Blocks and create a new one with Identifier * : “static-image-2”

Frontend

Backend Setting

Coppy & paste the code chain for Content of Static-image-2:

<div class="static-image static-image-2">
	<div class="border-eff">
		<div class="inner">
			<a href="#" title="Static Image">
				<img src="{{media url="wysiwyg/home-page-image/static-image-home-5.jpg"}}" alt="" />
			</a>
		</div>
	</div>
</div>

6. Static-Brand-slider

To add this static block, first go to CMS then click Static Blocks and create a new one with Identifier * : “static-brand-slider”

Frontend

Backend Setting

Coppy & paste the code chain for Content of Static-Brand-slider:

<div class="block-brand">

	<div class="brand-slider">
		<div class="item">
			<div class="border-eff">
				<div class="inner">
					<div><a href="#" title="Brand"><img src="{{media url="wysiwyg/brand/brand-1.png"}}" alt="Brand" /></a></div>
				</div>
			</div>
		</div>

		<div class="item">
			<div class="border-eff">
				<div class="inner">
					<div><a href="#" title="Brand"><img src="{{media url="wysiwyg/brand/brand-2.png"}}" alt="Brand" /></a></div>
				</div>
			</div>
		</div>

		<div class="item">
			<div class="border-eff">
				<div class="inner">
					<div><a href="#" title="Brand"><img src="{{media url="wysiwyg/brand/brand-3.png"}}" alt="Brand" /></a></div>
				</div>
			</div>
		</div>

		<div class="item">
			<div class="border-eff">
				<div class="inner">
					<div><a href="#" title="Brand"><img src="{{media url="wysiwyg/brand/brand-4.png"}}" alt="Brand" /></a></div>
				</div>
			</div>
		</div>

		<div class="item">
			<div class="border-eff">
				<div class="inner">
					<div><a href="#" title="Brand"><img src="{{media url="wysiwyg/brand/brand-5.png"}}" alt="Brand" /></a></div>
				</div>
			</div>
		</div>

	</div>
</div>

<script>
	jQuery(document).ready(function($) {
		var owl_slidebrand = $(".brand-slider");
		owl_slidebrand.owlCarousel({

			responsive:{
				0:{
					items:2
				},
				480:{
					items:3
				},
				768:{
					items:3
				},
				992:{
					items:4
				},
				1200:{
					items:5
				}
			},

			autoplay:false,
			loop:true,
			nav : true, // Show next and prev buttons
			dots: false,
			autoplaySpeed : 500,
			navSpeed : 500,
			dotsSpeed : 500,
			autoplayHoverPause: true,
			margin:0,

		});
	});

</script>

To add this static block, first go to CMS then click Static Blocks and create a new one with Identifier * : “footer-about”

Frontend

Backend Setting

Coppy & paste the code chain for Content of Footer-about:

Lorem ipsum dolor sit amet, consectetur adipisicing elit. Voluptates sunt eligendi deserunt vitae magnam necessitatibus rem laudantium iusto corporis commodi veniam inventore libero, porro! Tempora, modi molestiae neque!

To add this static block, first go to CMS then click Static Blocks and create a new one with Identifier * : “footer-contact-us”

Frontend

Backend Setting

Coppy & paste the code chain for Content of Static-Footer-contact-us:

<div class="footer-block-title">
									<h2>Contact</h2>
								</div>

								<div class="footer-block-content">
									<ul>
										<li><i class="fa fa-envelope"></i><span class="label-footer">Email</span><a href="mailto:name@email.com" title="Mail to: hr@atomshop.com">hr@me.com</a></li>
										<li><i class="fa fa-phone"></i>
<span class="label-footer">Phone</span>  <a href="tel:+842800011800" title="Telephone">02 8000 11 800</a></li>
										<li><i class="fa fa-home"></i>
<span class="label-footer">Address</span>199 King Street, Melbourne Victoria 3000 Australia</li>
									</ul>
								</div>
<div class="more-contact"><a href="{{config path="web/unsecure/base_url"}}contact-us.html">Contact Us<i class="fa fa-angle-right"></i>
</a></div>

To add this static block, first go to CMS then click Static Blocks and create a new one with Identifier * : “footer-information”

Frontend

Backend Setting

Coppy & paste the code chain for Content of Footer-information:

<div class="footer-block-title">
									<h2>Information</h2>
								</div>

								<div class="footer-block-content">
									<ul>
										<li><a href="{{config path="web/unsecure/base_url"}}about-us.html" title="About us">About us</a></li>
										<li><a href="{{config path="web/unsecure/base_url"}}contact-us.html" title="Contact us">Contact us</a></li>
										<li><a href="#" title="Delivery">Delivery</a></li>
										<li><a href="#" title="Information">Information</a></li>
										<li><a href="#" title="Privacy">Privacy</a></li>
										<li><a href="#" title="Policy">Policy</a></li>
										<li><a href="#" title="Terms & conditions">Terms & conditions</a></li>
										<li><a href="#" title="Site map">Site map</a></li>
									</ul>
								</div>

To add this static block, first go to CMS then click Static Blocks and create a new one with Identifier * : “footer-payment”

Frontend

Backend Setting

Coppy & paste the code chain for Content of Static-Footer-payment:

								<ul>
									<li><img src="{{media url="wysiwyg/payment/payment.png"}}" alt="Payment" /></li>
								</ul>

3.5 How To Edit Copyright in admin

Frontend Appearance

In the Administrator page, Please navigate to System >> Configuration >>; find SM Matrix Setting Module to configure the “Custom Copyright” parameter as image below:

Advanced Style

Show Cpanel – Allow to Enable/Disable Cpanel
Show Go to Top – Allow to Enable/Disable Go to Top
Use Add to Cart – Allow to Enable/Disable Cart
Use Add to Wishlist – Allow to Enable/Disable Wishlist
Use Add to Compare – Allow to Enable/Disable Compare
Enable Custom Copyright – Allow to Enable/Disable Custom Copyright
Copyright – If you select “Yes”, please custom copyright here, or else “No” will display the default copyright of Magento.
Custom Css – Allow to custom css
Custom Javascript – Allow to custom Javascript

3.6 How To Customize the Social symbols in admin panel

Frontend Appearance

In the Administrator page, Please navigate to System >> Configuration >>; find SM Matrix Setting Module to configure the “Social style” parameter as image below:

4SUPPORT – Back to top

Thank you so much for purchasing this theme. If you have any questions that are beyond the scope of this help file, please send us via: Support Tickets System

Thanks a bunch!

SM Matrix

2.1 Quickstart Installation :

2.2 Manual Installation

2.3 Theme Setting

3.1 Page Configuration

3.2 Configure Mega Menu

3.2.1 With Horizontal Mega Menu:

3.2.2 With Vertical Mega Menu ( In The Homepage 1)

3.3 Configure Extensions

3.4 Configure Static Blocks

1. Static-Service-Home

2. Static-Image-1

3. Static-Slider-testimoials

4. Static-Tab-Rating-Random

5. Static-image-2

6. Static-Brand-slider

7. Static-Footer-about

8. Static-Footer-contact-us

9. Static-Footer-information

10. Static-Footer-payment

3.5 How To Edit Copyright in admin

3.6 How To Customize the Social symbols in admin panel
